LPU Sectional

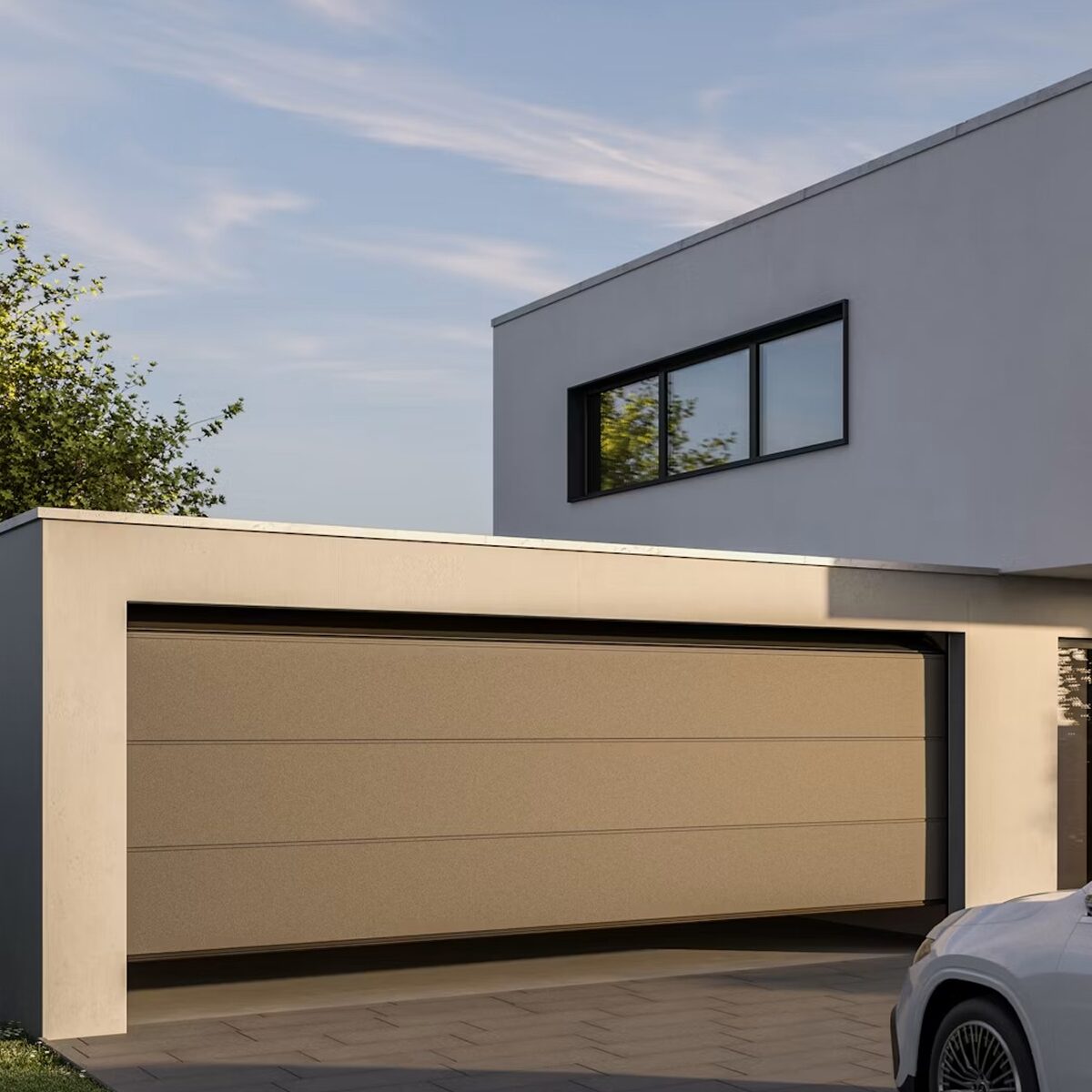

The Hörmann LPU Sectional is made from a double skin of high grade steel with an insulation infill and are particularly recommended for garages that are attached directly to the house.
LPU 42 or LPU 67?
The LPU 42 was the first Hörmann LPU door and offers very good thermal insulation with its 42mm thick sections.
The New LPU 67 Thermo offers everything that is expected from modern construction: the door has excellent thermal insulation, which is achieved by sections with thermal break with a U-value of 0.33 W/ (m²·K)*. This Hörmann LPU Sectional has a very good seal on spaces between sections with double lip seals and an optimum floor connection using double bottom seals, which also compensate for floor unevenness and energy losses.
Numerous advantages of the Hörmann LPU Sectional garage door
Sectional garage doors open vertically upwards and are suspended under the ceiling to save space. This construction principle means you can make full use of the space inside and in front of the garage. In addition, sectional garage doors can be fitted in any garage opening and offer up to 14 cm more passage width than up-and-over doors.
The Hörmann LPU Sectional is available in a range of designs, has 3 finish options (woodgrain, sandgrain and silkgrain) and 16 standard colour options, as well as being available in RAL to choose.
The Hörmann LPU 42 has the widest choice when it comes to design and is available in a range of standard sizes or specially made to measure.
Features of the Hörmann sectional garage door
- 10 year limited warranty
- Provides maximum drive through clearance in both width and height
- Modern design matches most contemporary architecture
- Superior lifting gear providing super smooth operation
- Flexible and weather resistant seals on all four sides to keep out wind, rain and even snow
- Full technical and warranty support available
Available Options with the Hörmann sectional garage doors
- Special anchor set (required if you fix the door between brickwork and fasten the frame on the other side)
- If using special anchor set cover profiles will be required to cover fixing holes
- Purpose made width cut-down service (check for size limitations)
- Factory-fitted handle and lock available with a 2 week increase in leadtime
- Standard headroom torsion spring for doors less than 3005mm wide
- Low headroom tracks arrangement for torsion spring door over 3050mm wide
- When paired with a Hörmann motor the T-ribbed sectional gains Hörmann’s Secured by Design Accreditation.
Top Features
Choose between the double-skinned sectional LPU 67 Thermo, or the LPU 42. They both have outstanding thermal insulation.
-
Duragrain decors
The new Hörmann Duragrain finish comes in 24 different decors with a detailed, natural and colourfast door view. Innovative digital printing ensure a long-lasting beautiful finish.
-
Matching appearance
For white doors and all surface finishes, the fascia panel is always matching to the door sections. For coloured sectional doors, there are optional matching frame coverings in the same colour and finish.
-
Anti-lift security
When the garage door is closed, the anti-lift kit automatically engages and locks in place to secure against forced opening. This can continue to secure the door even when the power fails.
-
Long-term protection
A non-brittle 4cm plastic frame shoe covers the frame where it is prone to rusting and offers long-term protection against corrosion, even with waterlogging. The frame shoe matches the bottom edge to make the door visually appealing.
Colours
The Hörmann sectional garage doors have a massive range of finishes to suit your home.
Woodgrain / Silkgrain
The Woodgrain and Silkgrain surface finishes are optionally available in around 200 colours according to RAL (exception of pearl-effect and fluorescent) as well as in many NCS and DB colours.
-
White RAL 9016
(Standard Colour) -
Anthracite Metallic CH 703
-
Grey Aluminium RAL 9007
-
Silver RAL 9006
-
Black RAL 9005
-
Terra Brown RAL 8028
-
Window Grey RAL 7040
-
Quartz Grey RAL 7039
-
Light Grey RAL 7035
-
Stone Grey RAL 7030
-
Anthracite Grey RAL 7016
-
Slate Grey RAL 7015
-
Basalt Grey RAL 7012
-
Fir Green RAL 6009
-
Moss Green RAL 6005
-
Light Ivory RAL 1015
Slategrain
The new Slategrain surface finish from Hörmann
-
White RAL 9016
(Standard Colour) -
Anthracite Grey RAL 7016
Sandgrain
-
White RAL 9016
(Standard Colour) -
White Aluminium RAL 9006
Planar
-
White RAL 9016
(Standard Colour) -
Matt Deluxe White Aluminium CH 9006
-
Matt Deluxe Grey Aluminium CH 9007
-
Matt Deluxe Anthracite Grey CH 7016
-
Matt Deluxe Terra Brown CH 8028
-
Matt Deluxe Anthracite Metallic CH 703
Decograin
-
Titan Metallic CH 703
-
Golden Oak Decograin
-
Dark Oak Decograin
-
Night Oak Decograin
-
Rosewood Decograin
-
Winchester Oak Decograin
Duragrain
Scratch-resistant and stain-resistant. This is an innovative digital printing process in combination with a high-strength protective paint for a permanently beautiful door appearance.
-
Concrete Duragrain
-
Beige Duragrain
-
Mocca Duragrain
-
Grigio Duragrain
-
Grigio Scuro Duragrain
-
Rusty Steel Duragrain
-
Bamboo Duragrain
-
Burned Oak Duragrain
-
Cherry Duragrain
-
Nature Oak Duragrain
-
Pine Duragrain
-
Rusty Oak Duragrain
-
Noce Sorrento Balsamico Duragrain
-
Noce Sorrento, Plain Duragrain
-
Sapele Duragrain
-
Sheffield Duragrain
-
Teak Duragrain
-
Weathered Look Duragrain
-
Terra Walnut Duragrain
-
Colonial Walnut Duragrain
-
White Brushed Duragrain
-
White Oak Duragrain
-
White Oiled Oak Duragrain
-
Whitewashed Oak Duragrain
Extras
Handles & Emergency Release options on Hormann Sectional Garage Door
If your garage does not have a second entrance, you can optionally open your automatic garage door from the outside with a beautifully designed handle or an understated emergency release lock.
Door Handles available on Hormann Sectional Garage Doors
Hörmann door handles are set apart by a contemporary, modern shape. Here, the selection of material is not just a question of personal taste. For example, stainless steel handles are particularly robust and have a tough surface finish.
The lock can be integrated in the home locking system. Manually operated doors with a handle are locked and break-in-resistant with a latch lock . In this lock, a sturdy, automatic latching disc engages around a massive bolt on the side frame.
- Black plastic
- White cast aluminium, RAL 9016
- Silver cast aluminium
- Brushed stainless steel
- Polished stainless steel
- Brown cast aluminium, RAL 8028
- Latch lock Emergency release lock
Emergency release on Hormann Sectional Garage Doors
If you do not want a handle on your automatic sectional door, we recommend using an emergency release lock . An inconspicuous round cylinder (cannot be integrated in the home locking system) releases your garage door and you can easily open it in the case of an emergency.
You can also use a lever handle as an emergency release in automatic sectional doors. The door is then unlocked via a Bowden cable on the inside.
Window options for Hormann Sectional Garage Doors
Depending on the door type, you can select from various types of glazings with clear or textured single or double-panes. Clear synthetic
glazing from Hörmann comes as standard with DURATEC glazing.
It offers:
- Maximum scratch resistance
- A permanently clear view
- Improved thermal insulation
Wicket door options on Hormann Sectional Garage Doors
A door in the door lets you easily access whatever you have in your garage, such as gardening tools, bikes or wheelbarrows. Only Hörmann offers a wicket door with a stainless steel threshold that is only 10 mm in the centre and 5 mm high at the sides. This reduces the risk of tripping up and makes it easier to wheel things through. The aluminium door frame is anodised as standard in a natural finish and is also available in the door colour. The top garage door section, also in the wicket door area, comes with a continuous lintel seal.
Automation on Hormann Sectional Garage Doors
Hormann Operators are available in a range of power levels to suit your needs but all come with a variety of different options available and nearly all are fitted with the latest rolling code remote control technology.
Hormann offer the Promatic and Supramatic operators in a range of power levels, some of which come with additional features, such as;
- Bi-directional technology
- Multi speed for soft open and close
- Self closing timer option
- Remote status query, this feature allows to see if your door is open or closed by looking at the remote.
- Half open feature for ventilation
- Design choices, including colour matched handsets.
- Operate using your phone or App.
- Wall mounted push buttons, keypads and finger scanners
